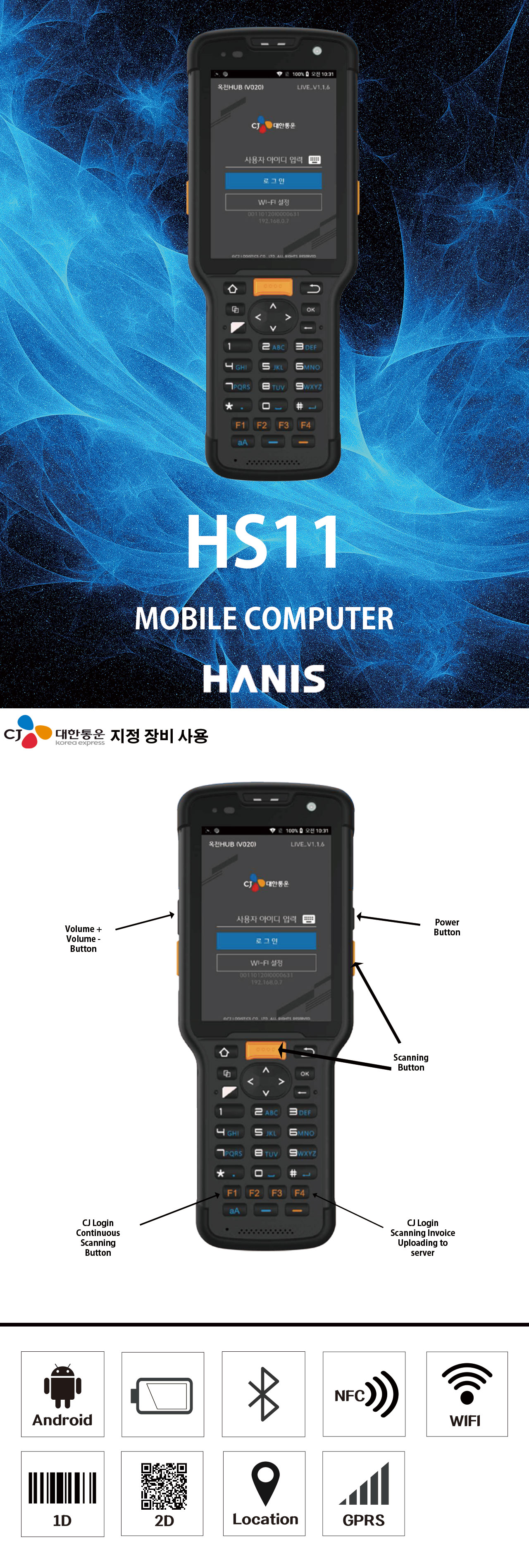

Mobile Computer HS11
| Used in | Logistics, warehouses, distribution, medical devices, services. |
|---|---|
| Operating system | Google Android 11 |
| Dustproof and waterproof | Vibration-proofing design of Rugged IP65 kerosene |
| Screen | MTK CPU/Corning gorilla class TP |
| Format | 1D/2D barcode scanner, USB2.0 OTG/NFC (13.56M) |

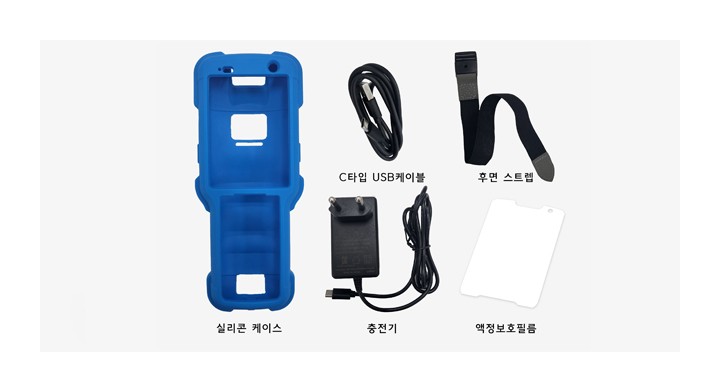

| Optional | Protect Cover/Strap/Scan trigger/vehicle stand etc. |
본문
 |
Specifications
| Basics | |
|---|---|
| CPU specifications | Octa-Core 2.0Ghz / ARM Cortex-A53 2.0*4, 64bit |
| OS version | Andorid 11 |
| RAM/ROM | 3GB / 32GB |
| Camera | 13MP AF high-brightness LED flash, front 5MP FF |
| Display/pixel count | 3.5 inches, IPS highlight screen / 640*960 |
| Product size | 184mm x 70mm x 29.8mm |
| Product weight (including battery) | Without battery 199g / 7oz With standard battery: 307g / 10oz |
| battery | |
|---|---|
| Capacity | 7,000Ah |
| Charging method | PE fast charging support, full charge time about 5 hours |
| Communication method | |
|---|---|
| BLUETOOTH | BT5.1 + BLE |
| WIFI | IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency |
| MOBILE | 4G LTE |
| GPS location support module | GPS + BD + GLONASS |
| Expansion slot | Micro SD(TF) card slot up to 128GB |
| Interface | USB Type-C, 2pins Pogo contact, support cardle charge |
| Keypad | 35 buttons, 2 volume buttons, 1 power button, 2 function buttons |
| Main functions and performance | |
|---|---|
| Notification | sound, electric motor, LED flashing display |
| Operating temperature/storage temperature | -20℃ to +55℃ / -30℃ to +70℃ |
| Operating humidity | 5% to 95% |
| IP rating (dustproof and moisture proof, etc.) | IP65 |
| Drop test | 1.5m free fall on 6 sides |
| Barcode engine specifications | Honeywell N6703SR or Newland N1 engine |
 |
