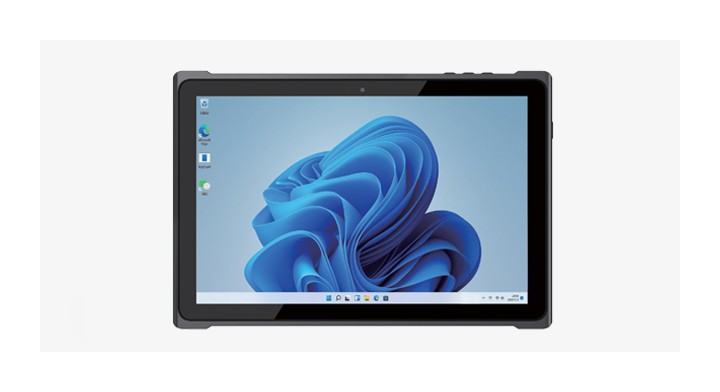

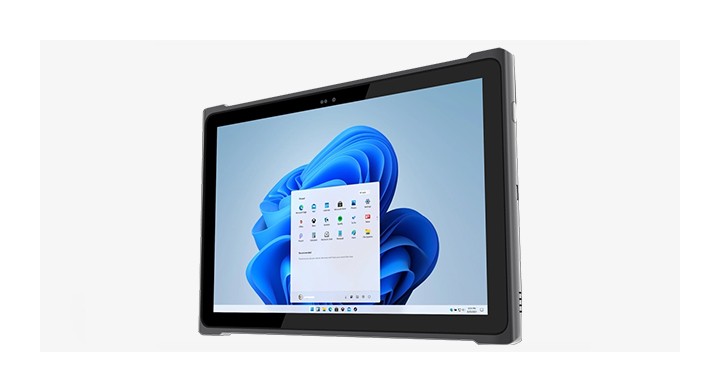

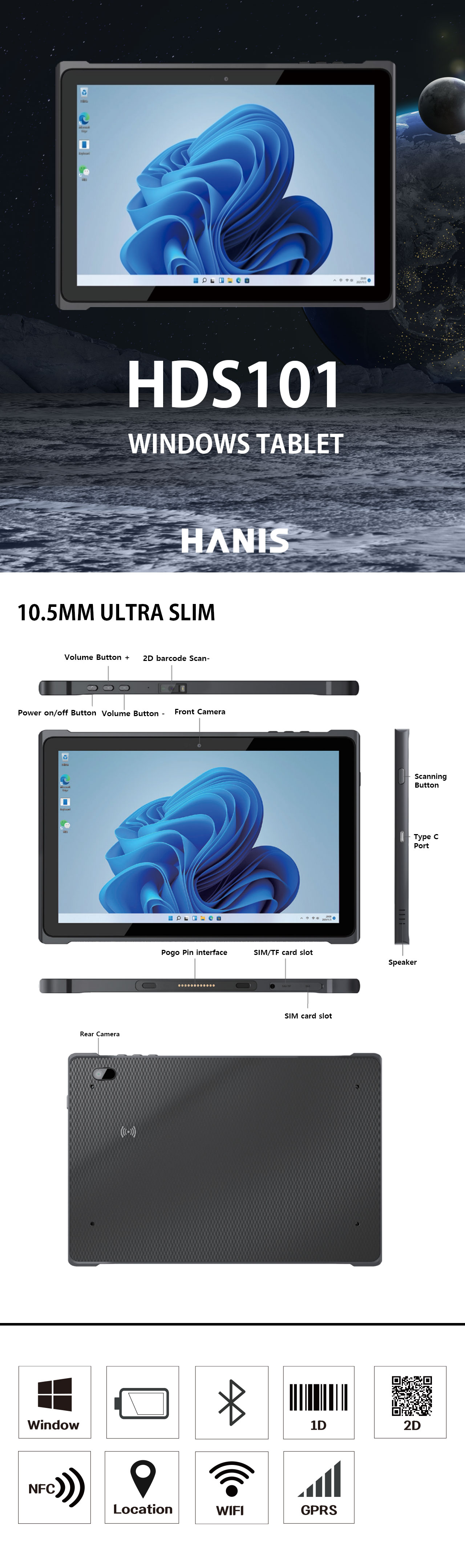

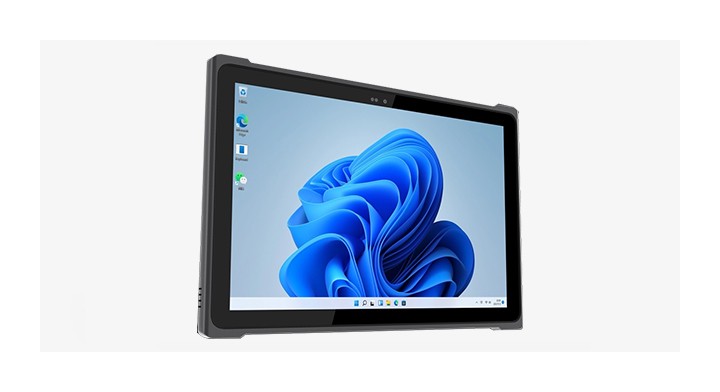

Windows Tablet HDS101
| 크기 | 263 x 177 x 10.5mm |
|---|---|
| 무게 | 700g |
| 제품컬러 | black |
| LCD | 10.1 inch IPS 16;10, 1200x1920, 400nits |
| 터치패널 | 10 point G+G capacitive touch screen |
| 카메라 | Front 5.0MP Rear 13.0MP |
| 파워 | Voltage stabilization 12V/3A, 36W |
본문
 |
제품사양
| Basic parameters | |
|---|---|
| Dimension | 263 x 177 x 10.5mm |
| Weight | 700g |
| Device Color | black |
| LCD | 10.1 inch IPS 16:10, 1200x1920, 400nits |
| Touch Panel | 10 point G+G capacitive touch screen |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB Type-C x 1, SIM Card x 1, TF Card x 1, (Two out of three Cato) 12pins Pogo Pin x 1 |
| Power | USB Type-C interface, Voltage stabilization 12V/3A, 36W |
| Communication | |
|---|---|
| WIFI | WiFi 802.11 a/b/g/n/ac (2.4G+5.0G or 5.1G+5.8G) |
| Bluetooth | BT5.1 Transmission distance: 10m |
| 2G/3G/4G (Optional) | European version band： GSM：NA WCDMA：B1/B3/B5/B8 FDD：B1/B3/B5/B7/B8/B20/B28(a+b) TDD：B38/B39/B40/B41 American version band： GSM：NA WCDMA：B2/B4/B5 FDD：B2/B4/B5/B12/B13/B14/B17/B25/B26/B30/B66/B71 TDD：B38+B41N |
| GNSS | Support GPS/Galileo/GLONASS/BeiDou(G+G+G+B) |
| Performance parameter | |
|---|---|
| CPU | ARM OCTA Core |
| OS | Windows 11 |
| RAM | 8GB/4GB |
| ROM | 128GB/64GB |
| Battery | |
|---|---|
| Capacity | 4750mAh/7.6V |
| Type | Built-in Li-polymer battery |
| Endurance | 11hrs ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Data Collection | |
|---|---|
| 2D | Optional Optical resolution: ≥3mil scan speed: 75 times /s Code system: 1D：Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI_x005f_x005f_x005f_x005f_x005f_x005f_x0002_Plessey 2D： PDF417, QR Code, Micro QR, Data Matrix |
| Reliability | |
|---|---|
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified |
| Drop Height | 1m |
 |
