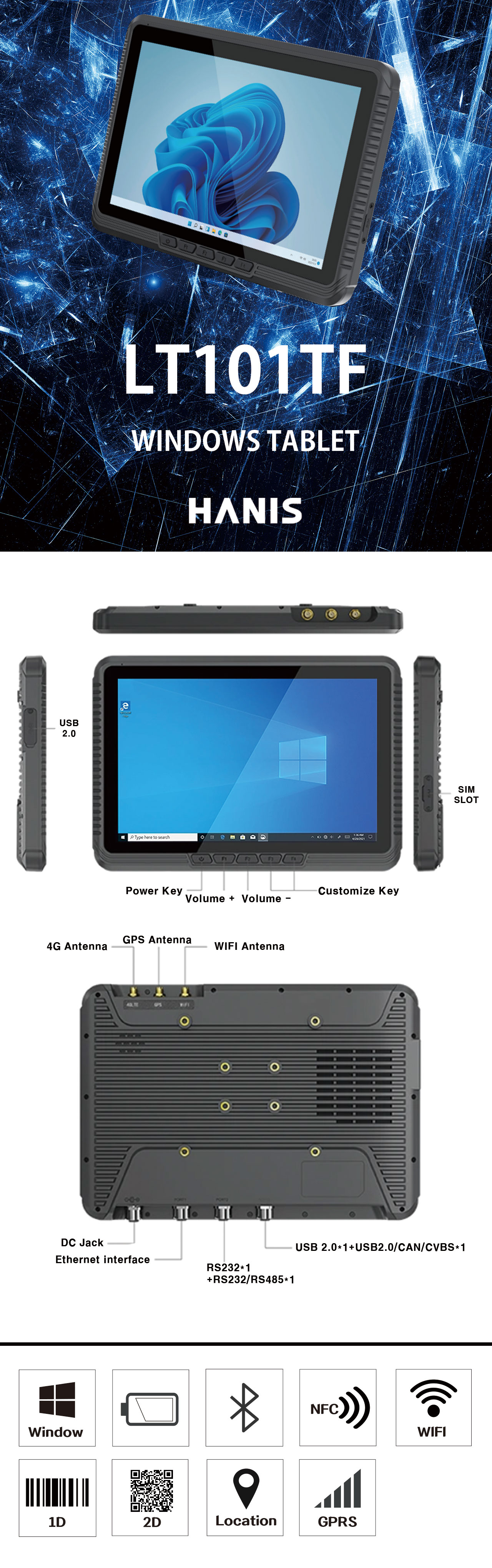

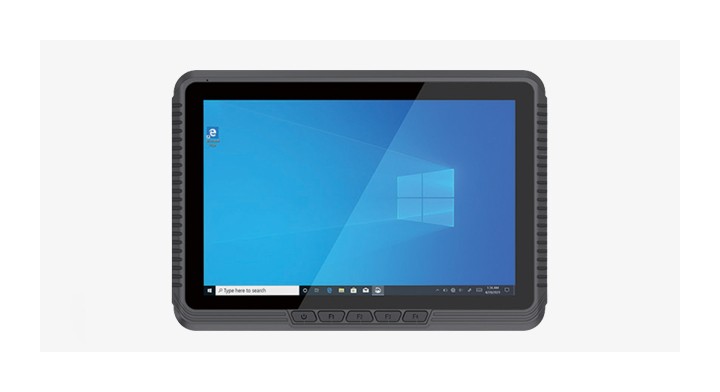

Windows Tablet LT101TF
| 크기 | 264.5*184.1*23.0 mm |
|---|---|
| 무게 | 834 g |
| 제품컬러 | black |
| LCD | 10.1 inch, 800*1280, 700nits |
| 터치패널 | 5-point tempered glass capacitive screen G+G |
| NFC | Optional, 13.56MHz, Card reading distance |
| 용량 | 1000mAh/7.4V |
본문
 |
제품사양
| Basic parameters | |
|---|---|
| Dimension | 264.5*184.1*23.0 mm |
| Weight | 834 g |
| Device Color | black |
| LCD | 10.1 inch, 800*1280, 700nits |
| Touch Panel | 5-point tempered glass capacitive screen G+G |
| I/O | Nano-SIM *1 (Optional) USB 3.0 Type-A *1 RS232 + RS232/RS485 (Optional) Ethernet interface (100/1000M) (Optional) USB 2.0 *2 + CAN/CVBS *1 (Optional) Power DC Jack |
| NFC | Optional, 13.56MHz, Card reading distance: 4cm |
| Battery | |
|---|---|
| Capacity | 1000mAh/7.4V |
| Type | Built-in Li-polymer battery |
| Endurance | 30mins ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default ) |
| Network connections | |
|---|---|
| WIFI | 802.11 a/b/g/n/ac (2.4G/5.8G) |
| Bluetooth | BT5.0, Transmission distance: 10m |
| 4G (Optional) | Optional, LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40 WCDMA: B1/B5/B8 GSM: B3/B5 |
| GNSS | Built-in GPS，GLONASS, Optional Beidou |
| Performance parameter | |
|---|---|
| CPU | Intel® Celeron® N5100 |
| OS | Windows 11, Optional Windows 10 |
| RAM | 4GB, Optional 8GB, Up to 16GB |
| Storage | 64GB, Optional 128GB, Up to 512GB |
| Standard Accessories | |
|---|---|
| WIFI Antenna | Standard, 2.4~2.5GHz/5.15~5.85GHz, 2±0.5dBi |
| GPS Antenna | Standard |
| Adapter Cable | Standard, 8 PIN aviation plug to φ5.5 power port |
| Optional Accessories | |
|---|---|
| 4G Antenna | Optional, to be used together with 4G module |
| Bracket | Optional |
| Function Adapter | Optional, 12PIN to 2-way USB 1-way CAN 12PIN to full function RS232 + RS485/R232 12PIN to 1000M RJ45 12PIN to 12 loose wires 1.2m |
| GPS Antenna | Optional |
| Power (One out of four) | Cigarette Lighter Adapter, 19V/3.42A Power Adapter, 19V/3.42A DC φ5.5 Adapter Adapter Cable, 8pin power cord to 8 loose wires (1.2M) Wide Voltage, 9~36V wide voltage input, 12V±0.5V constant voltage output |
| Reliability | |
|---|---|
| Operate Temperature | -20 °C ~ 60 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified |
| Electrostatic Discharge | ±8kV contact discharge, ±15kV air discharge |
 |
