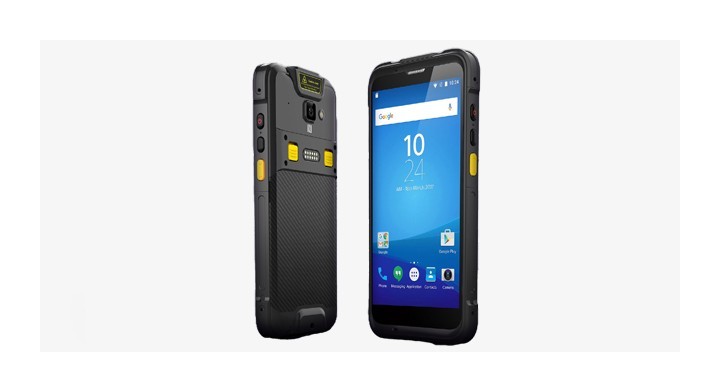

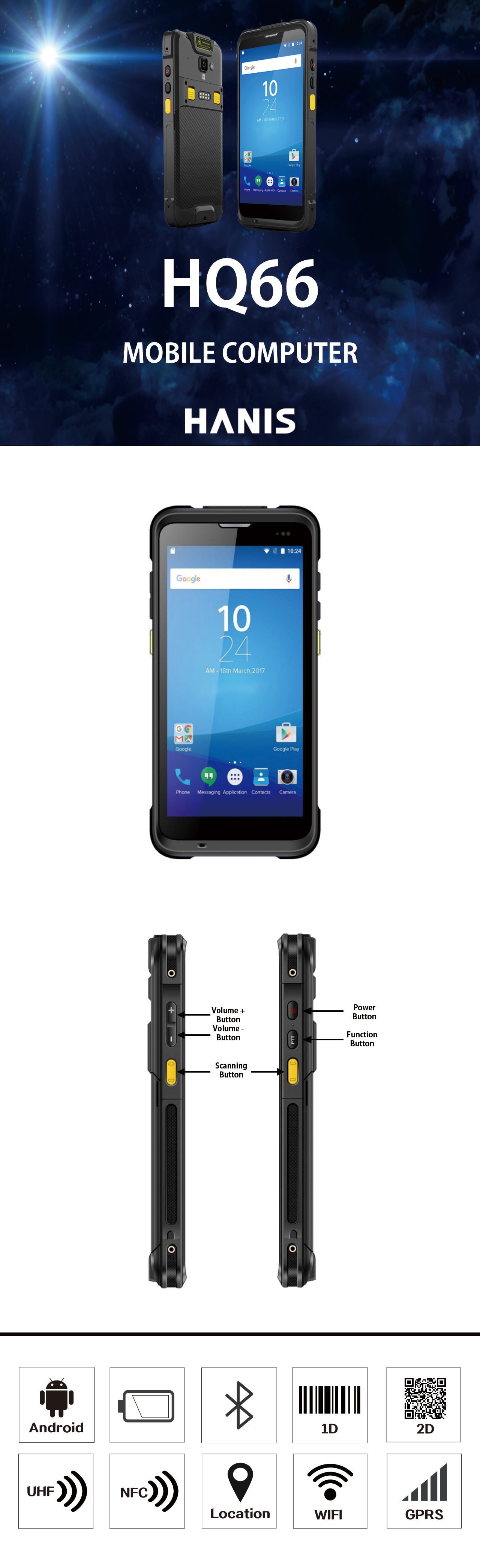

    Mobile Computer HQ66

    크기 160mm×76mm×15.5mm 6.3×2.99×0.67in
    무게 287g / 10.12oz, (배터리 포함 장치) 657g / 23.17oz, 798g
    배터리 착탈식 4420mAh 5200mAh 옵션 권총 배터리, QC3.0 및 RTC 지원
    디스플레이 5.5-inch high definition full display (18 | 9), IPS IGZO 1440 x 720
    터치패널 Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
    센서 Accelerometer sensor, light sensor, proximity sensor, gravity sensor
    알림 Sound, LED indicator, vibrator

    본문



    제품사양
    Basics
    Dimensions 160mm×76mm×15.5mm
    6.3×2.99×0.67in
    Weight 287g / 10.12oz, (Device with battery) 657g / 23.17oz, 798g
    Battery removable battery : 4420mAh
    520mAh Additional pistol gun trigger battery, QC3.0 and RTC support
    Display 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
    Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
    Sensor Accelerometer sensor, light sensor, proximity sensor, gravity sensor
    Notification Sound, LED indicator, vibrator
    Audio 2 microphones, 1 for noise cancellation; 1 speaker; receiver
    Card Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
    Interfaces Android 9.0: USB Type-C, USB 3.0, OTG, extended thimble
    Android 11.0: USB Type-C, USB 3.1, OTG, extended thimble
    Performance
    CPU Android 9: Qualcomm Snapdragon™450 Octa-core, 1.8 GHz
    Android 11: Qualcomm Snapdragon™662 Octa-core, 2.0 GHz
    RAM+ROM RAM+ROM 3 GB + 32 GB / 4 GB + 64 GB
    Expansion Expansion Supports up to 128 GB Micro SD card
    User Environment
    Operating Temp. -4℉~112℉ / -20℃~50℃
    Storage Temp. -40℉~158℉ / -40℃~70℃
    Humidity 5% RH ~ 95% RH(non-condensing)
    Drop test Multiple drops to concrete from 1.8 m/5.9 ft across the operating temperature range (at least 20 times) 1000*0.5m/ 1.64ft. drop at room temperature
    Water and dustproof IP65 according to IEC sealing specifications
    ESD ±15 KV air discharge, ±8 KV conductivity inversion
    Data Collection
    Rear Camera Rear 13 MP Autofocus with flash
    NFC Frequency : 13.56 MHz
    Protocol : ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
    Chips : M1 card (S50, S70), CPU card, NFC tags, etc.
    Range : 2-4 cm
    Barcode Scanning
    2D Scanner Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S
    1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5,
    Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
    2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code,
    Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US
    Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
    UHF
    Engine 1 W (+5 dBm to +30 dBm adjustable)
    R/W Pam Up to 1.5 m

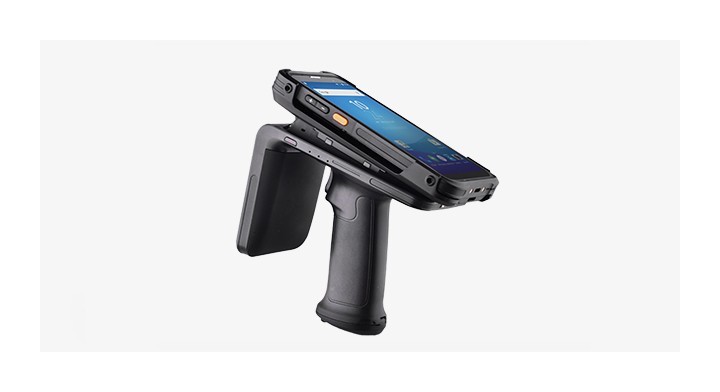

    Option accessory
    One button handle Handle+ Battery (Handle battery 5200mAh, one button) UNF bag clip+ handle (handle buttery 5200mAh, one button) Hand and neck strap, charge cradle, protection bumper
