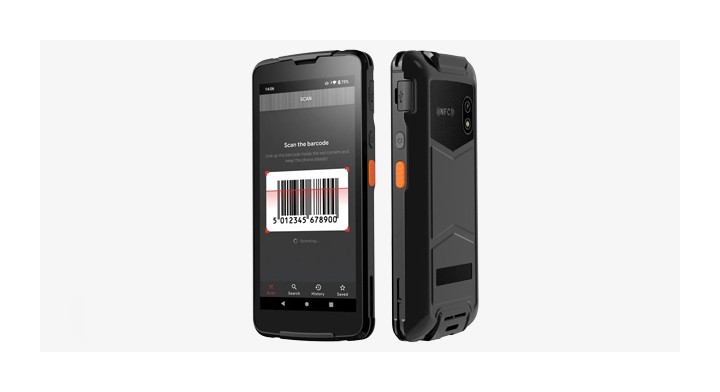

Mobile Computer HG50L
| 크기 | 155.15mm*74.5mm*16.8mm |
|---|---|
| 키패드 | 5 physical keys |
| 배터리용량 | 5000mAh |
| 디스플레이 | 5.5-inch IPS 720*1400 |
| 터치패널 | 5-point capacitive touch screen |
| 오디오 | MIC, Receiver, loudspeaker |
| 인터페이스 | USB Type-C, USB 2.0, OTG |
본문
 |
| Use industry |
|---|
 |
제품사양
| Basics | |
|---|---|
| Dimensions | 155.15mm*74.5mm*16.8mm |
| Keypad | 5 physical keys |
| Battery | 5000mAh |
| Display | 5.5-inch IPS 720*1400 |
| Touch Panel | 5-point capacitive touch screen |
| Front Camera | 5MP FF |
| Rear Camera | 13MP AF with Flash |
| Audio | MIC, Receiver, loudspeaker |
| Sensor | Proximity sensor, light sensor, accelerometer sensor |
| Vibrator | Support |
| Card Slot | 2Nano SIM card slots/1 Micro SD card slot+1 Nano SIM card slot |
| Interfaces | USB Type-C, USB 2.0, OTG |
| Development | |
|---|---|
| Operation System | Android 11 |
| SDK | SPEEDATA Software Development Kit |
| Language | Java |
| Tool | Android Studio |
| Environment | |
|---|---|
| Operating Temp. | -20℃~+55℃ |
| Storage Temp. | -30℃~+70℃ |
| Humidity | 5%~95% |
| Sealing | IP67 |
| Drop Specification | 1.8m free drops to concrete |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Performance | |
|---|---|
| CPU | Octa-core 2.0GHz |
| RAM+ROM | 3GB+32GB |
| Expansion | Supports up to 256 GB Micro SD card |
| Communication | |
|---|---|
| WWAN | FDD-LTE B1/B3/B5/B7/B8; TDD-LTE B38/B39/B40/B41; TDSCDMA B34/B39; WCDMA B1/B2/B5/B8; GSM B2/B3/B5/B8; CDMA1x/CDMA2000 BC0/BC1 |
| WLAN | IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency (Wi-Fi 5); Fast roaming: PMKID caching, 802.11r, OKC |
| Bluetooth | BT5.0BLE |
| GNSS | GPS, GLONASS, BeiDou |
| NFC | |
|---|---|
| Frequency | 13.56MHz |
| Protocol | ISO14443A/B, ISO15693 |
| Range | 0~5cm depends on different tags |
| Barcode Scanning | |
|---|---|
| 2D Scanner | NLS-CM60 |
| 1D Symbologies | EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN128, RSS, ITF, ITF14, ITF6, ISSN, ISBN, Standard 25, Matrix 25,Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, etc. |
| 2D Symbologies | PDF417, Micro PDF417 , QR Code, Micro QR , DataMatrix, AZTEC, Han Xin,Maxicode, Composite, etc. |
 |
