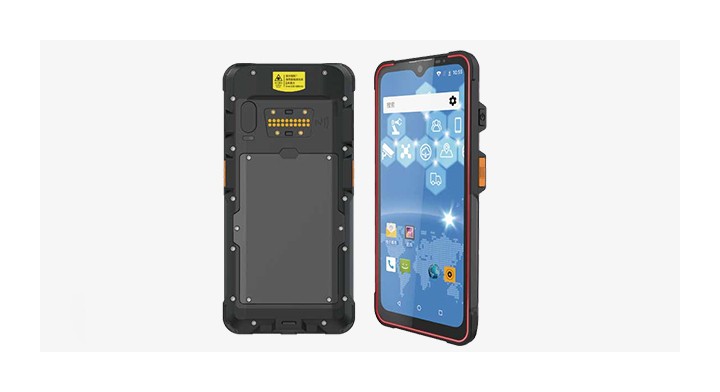

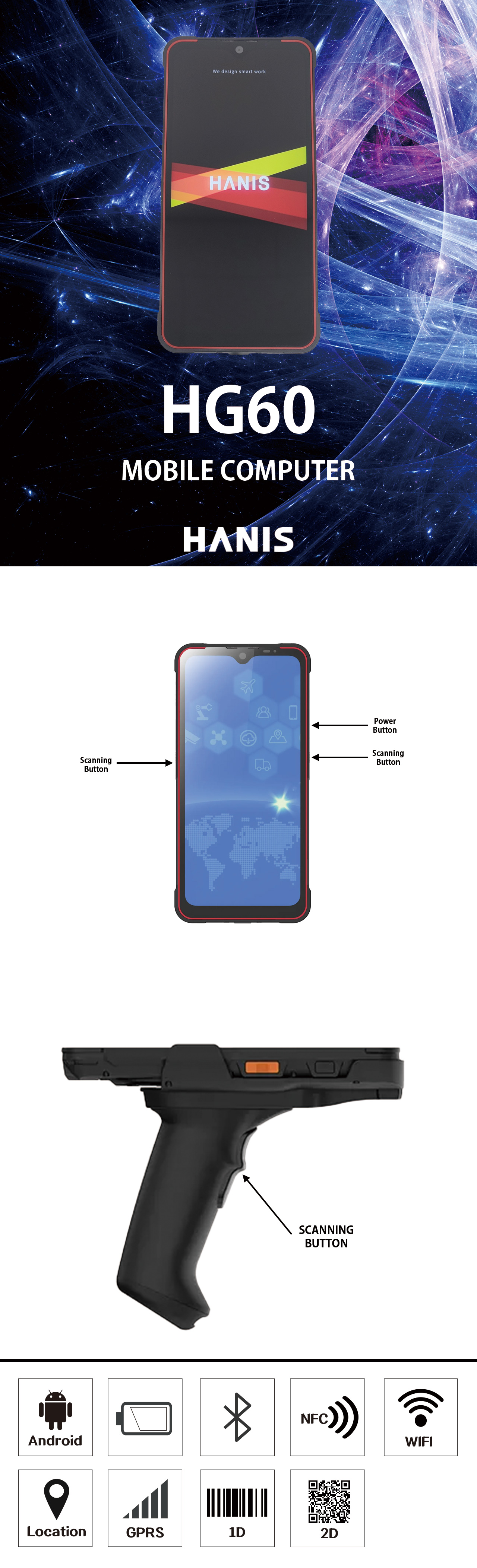

Mobile Computer HG60
| 크기 | 163x79x18mm |
|---|---|
| 무게 | 277g |
| 배터리 | 4700mAh or 6500mAh |
| 터치패널 | 5-point capacitive touch screen |
| 디스플레이 | 6 inch |
| 해상도 | 1080 * 2340 |
| 블루투스 | BT5.1(BLE) |
본문
 |
제품사양
| Basic parameters | |
|---|---|
| Dimension | 163 x 79 x 18mm |
| Weight | 277g |
| Touch Panel | 5-point capacitive touch screen |
| Audio | Bottom stereo speaker, volume 95db±3db (test distance 10cm); MIC*2 |
| Display | 6 inch |
| Resolution | 1080 x 2340 |
| Sensors | Geomagnetism, acceleration, light perception |
| Camera | Rear 13MP AF, high light LED flash Top 13MP FF, high light LED flash Front 8MP FF camera |
| Keypad | Volume key *2, Shortcut key *1, Power key *1 |
| Communication | |
|---|---|
| WIFI | IEEE 802.11 a/b/g/n/ac 2.4G/5G dual band supporting fast roamng |
| Bluetooth | BT5.1 (BLE) |
| GPS | GPS+BD+GLONASS |
| WWLAN | FDD-LTE B2/B3/B5/B7/B8/B28A TDD-LTE B34/B38/B39/B40/B41 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0 NR N1/N3/N28A/N41/N77/N78/N79 |
| Performance parameter | |
|---|---|
| CPU | MTK6833 Octa-core 2.2GHz |
| OS | Android 11 |
| RAM | 4GB or 6GB |
| ROM | 64GB or 128GB |
| Interface | Nano SIM card slot*2 Micro SD card slot *1, upto 128G USB TYPE-C port Support OTG, fast charging 5V/9V 1.67A Bottom charging pins |
| Notifications | Sound, vibration, LED |
| Barcode scanning | Newland CM60 2D scanner EAN13, EAN8, UPCA, UPCE, Code 128 Code 39, Codabar, UCC/EAN128, RSS, ITF ITF14,ITF6,ISSN,ISBN,Standard25 Matrix 25,Industrial 25,Plessey MSI Plessey, Code 11, Code 93, PDF417 QR Code, DataMatrix,AZEC,Han Xin Code, Maxicode,Micro QR,Micro PDF417 Composite |
| Battery | |
|---|---|
| Capacity | 4700mAh or 6500mAh |
| Expected Charge Time | PE fast charge, full charge time < 4h |
| Data Collection | |
|---|---|
| NFC | ISO14443A/B & ISO15693 working distance:0-5cm |
| Reliability | |
|---|---|
| Operate Temperature | -20 °C ~ 55 °C |
| Store Temperature | -30 °C ~ 70 °C |
| Humidity | 5% ~ 95% |
| IP ration | IP67 |
| Drop test | 1.8M drop to marble floor |
| Environment | |
|---|---|
| Certifications | CE/ROHS/Explosion-proof reports/UN38.3/IP67/1.8M drop test/MIL-STD-810G |
| ESD | Air discharge ±15kV, contact discharge ±8kV |
 |
