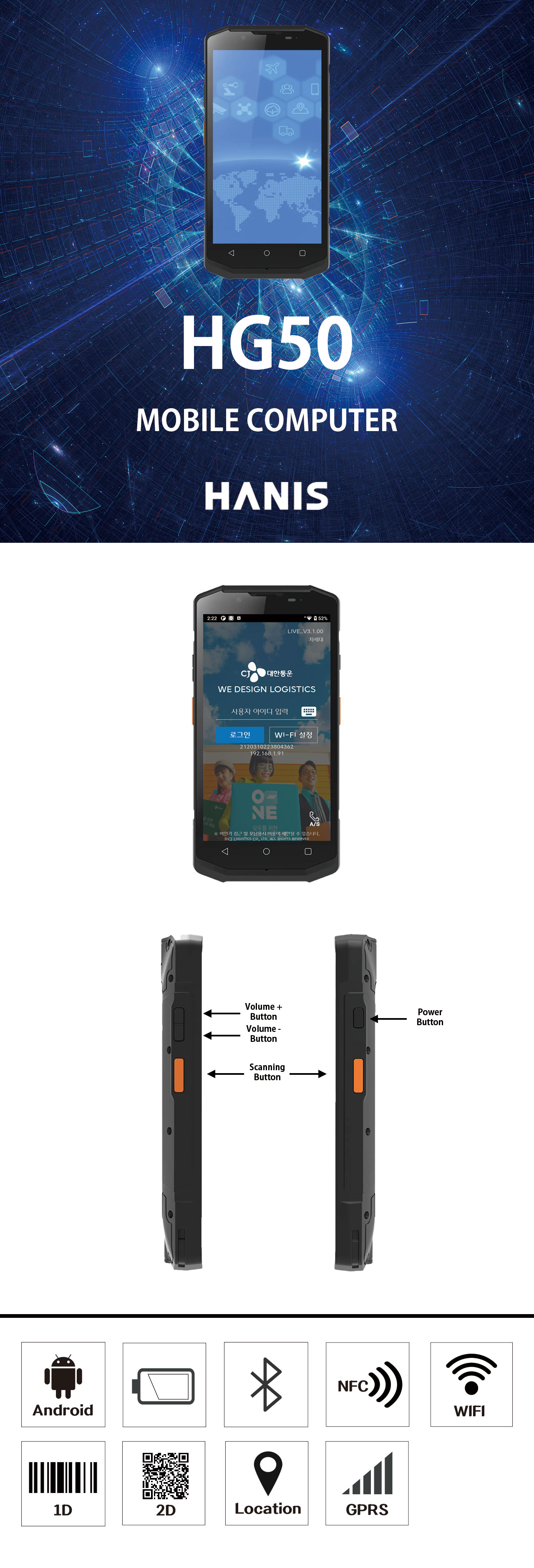

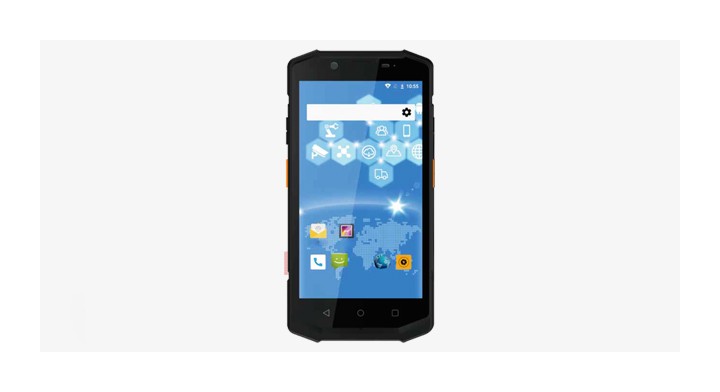

Mobile Computer HG50
| 크기 | 149.8 x 73.8 x 17mm |
|---|---|
| 무게 | 252g |
| 배터리 | 4500mAh |
| 스크린 | 5 inch |
| 해상도 | 720 x 1280 |
| 카메라 | 13MP AF High brightness LED flash lamp 8MP FF |
| 블루투스 | BT5.1(BLE) |
본문
 |
제품사양
| Basics | |
|---|---|
| Dimensions | 149.8*73.8*17mm |
| Weight | 252g |
| Battery | 4500mAh |
| Resolution | 720*1280 |
| Touch panel | 5 point capacitive touch screen |
| Sensor | Geomagnetism, acceleration, light perception |
| Notification | Sound, vibration, LED prompt |
| Audio | Bottom stereo speakers Volume 95db# 3db (testing distance: 10cm) |
| Charging mode | PE fast charging, full charging time<4 hours |
| Screen | 5 inch |
| Camera | 13MP AF High brightness LED flash lamp 8MP FF |
| Keypad | 5keys (include 1 power key, 2 volume key, 2 short cut keys) |
| Interfaces | SIM card slot *1, Micro SIM card slot*1 Micro SD card slot "1, up to 256G USB TYPE-C port Support OTG, fast charging 5V/9V 1.67A Bottom charging pins |
| Performance | |
|---|---|
| CPU | MTK6833 Octa-core 2.2GHz |
| RAM | 4GB |
| ROM | 64GB |
| Developing Enviroment | |
|---|---|
| OS | Android 11 |
| User Environment | |
|---|---|
| Operating Temp. | -20°C to +55°C |
| Storage Temp. | -30°C to +70°C |
| Humidity | 5% to 95% |
| IP Class | IP67 |
| Drop test | 1.8m free drop to concrete with 6 sides |
| Certification | CCC,SRRC,CTA,CE, ROHS,UN38.3.IP67 report 1.8meter drop test report, MSDS, MIL-STD-810G |
| ESD | ±15KV Air Discharge, ±8KV Contact Discharge |
| Data Collection | |
|---|---|
| NFC | support protocols:IS014443A/B, ISO15693 reading distance:0~5cm |
| Communication | |
|---|---|
| Bluetooth | BT 5.1 (BLE) |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G 5G dual band supporting fast roaming |
| WWLAN | FDD-LTE B1/B3/B5/B7/B8/B28A TDD-LTE B34/B38/B39/B40/B41 WCDMA B1/B2/B5/B8 GSM B2/83/85/88 CDMA1x/CDMA2000 BC0 NR NI/N3/N28A/N41/N77/N78/N79 |
| GPS | GPS+BD+GLONASS |
| Barcode Scanning | |
|---|---|
| Barcode Scanning | Newland CM60 module AZTEC, CODABAR, CODE11, CODE128, EAN128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CANPOST,AUSPOST,IATA25, CODABLOCK, JAPOST, PLANET, DUTCHPOST, MSI, TLC39, TRIOPTIC, CODE32, STRT25 |
 |
