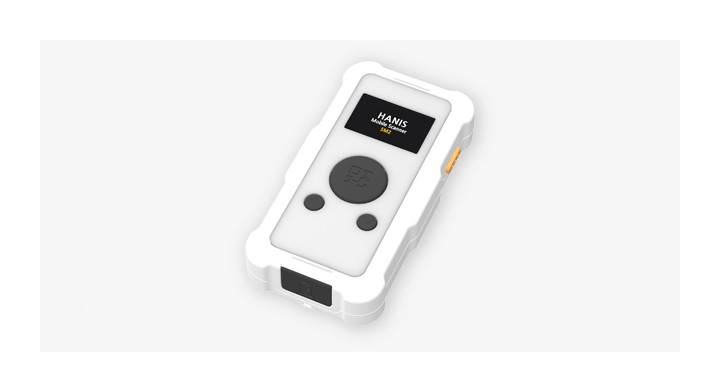

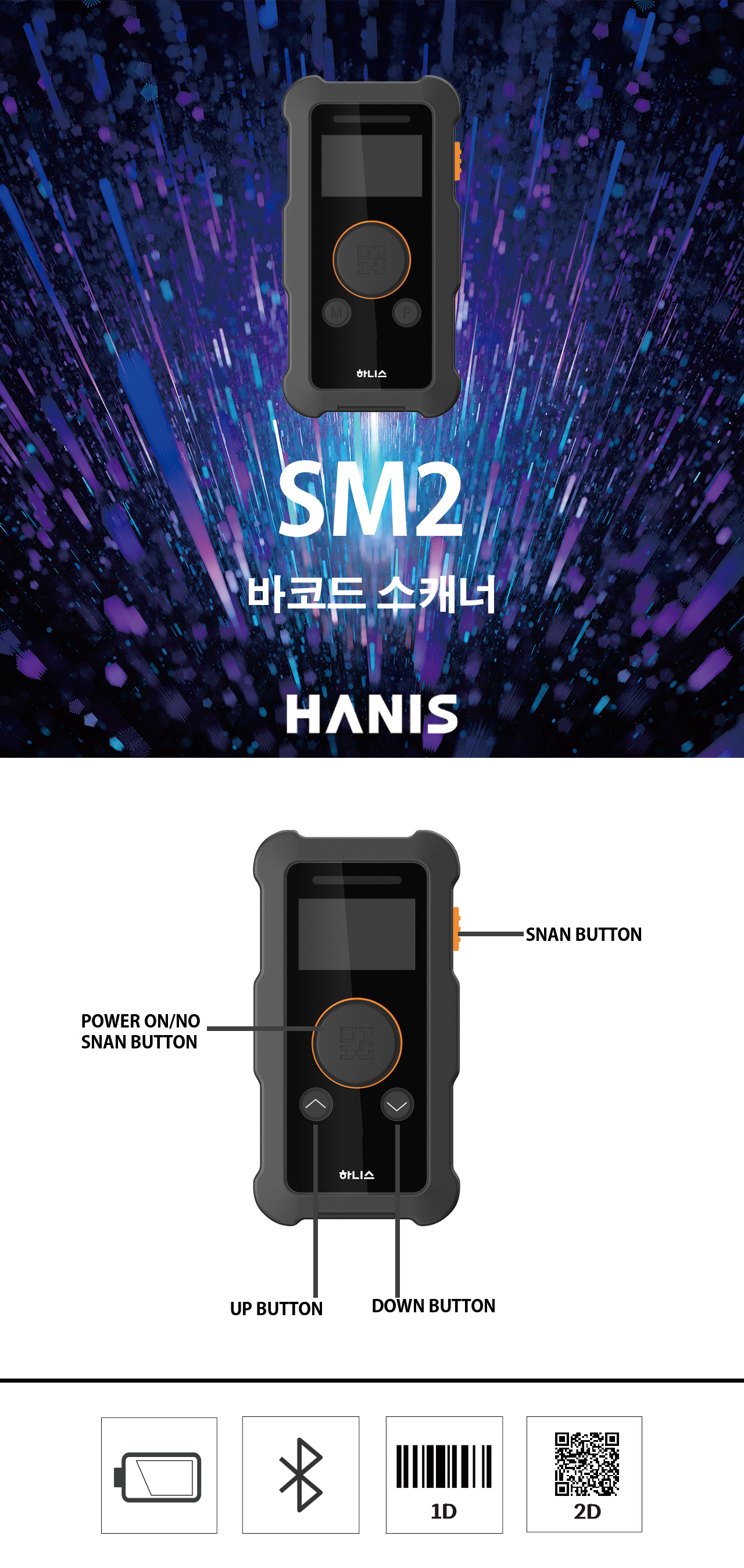

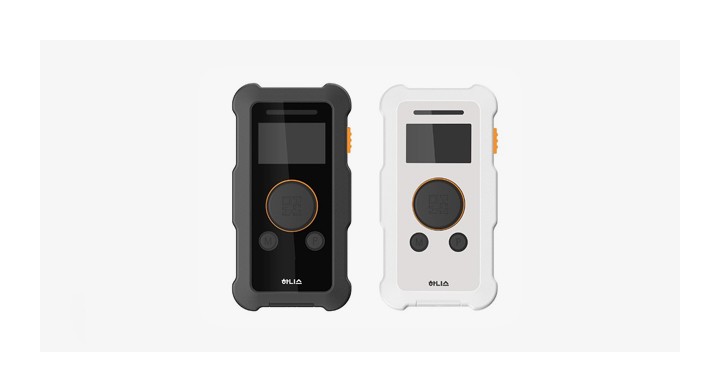

Barcode Scanner SM2
| 사용처 | 물류, 창고, 유통, 의료 기기, 서비스 |
|---|---|
| 접속방식 | Bluetooth Ble 5.0 |
| 방수 | IP65 방수 방진 등급 인증 |
| 형식 | 1D/2D 바코드 스캐너 |
| 배터리 | 1500mAh 대용량 배터리 적용 |
| LCD | Full Color TFT Display |
| 제조 | Made in Korea |
본문
 |
제품사양
| PHYSICAL CHARACTERISTICS | |
|---|---|
| Dimensions | 82mm(L)×46mm(W)×20mm(D) 3.22in.(L)×1.81in.(W)×0.79in.(D) |
| Weight | Weight including standard battery：68g /2.4oz When expanding the battery : 82g /2.9oz |
| Battery capacity | standard battery : 1,500mAh Expansion battery : 2,000mAh |
| Charging | 9V , 2A |
| Charging time | 1500mAh, 120min 2000mAh, 140min |
| Working time | 1000mAh, 36h (based on trigger every 5 seconds) 2000mAh, 48h (based on trigger every 5 seconds) |
| Notification | LED, buzzer, and vibration available |
| BLUETOOTH | |
|---|---|
| Overview | HID Keyboard, SPP and Bluetooth low energy (BLE) |
| Range | Communication distance connected to mobile phone >164.04ft./50m (without obstructions) |
| OTA | HID Keyboard, SPP and Bluetooth low energy (BLE) |
| USB | |
|---|---|
| Interface | Type-C |
| Profiles | USB HID Keyboard, USB VCP (Virtual Serial Port) |
| Multilingual keyboards | USB HID mode supports multilingual keyboards |
| USER ENVIRONMENT | |
|---|---|
| Ambient light | Max 107,639 lux (direct sunlight) |
| Storage/operating temperature | 14°F ~ 122°F / -10°C~50°C |
| Humidity | 5% to 85% non-condensing |
| Drop Spec | Multiple 4.9 ft./1.5 m drops to concrete over the operating temperature range. |
| Tumble Spec | Scanner body withstands 20,000 3.3ft./1.0 m tumbles. |
| Electrostatic Discharge(ESD) | ±8kVdc contact discharge; ±15kVdc air discharge |
| Certification | CE, KC,RoHS |
| PERFORMANCE CHARACTERISTICS | |
|---|---|
| Optical resolution | 640 x 400 pixels |
| Sensor | 2D CMOS Image |
| Skew, Pitch & Roll | Skew tolerance : ±60° Pitch tolerance : ±60° Roll tolerance : 360° |
| Field of view | 42º horizontal, 28º vertical |
| Lighting element | 1 Hyper Red 660nm LED |
| Aiming element | 610nm LED |
| Supported Symbologies | UPC-A, UPC-E, UPC-E1,EAN-8 JAN 8, EAN-13/-JAN 13, Bookland EAN, ISSN EAN, Code 128, GS1-128, ISBT-128, Code 39, Trioptic Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Composite Codes : Composite CC-C, Composite CC-A/B, Compo PDF417, MicroPDF417, Code 128 Emulation, DataMatrix, Maxicode, QR Code, MicroQR Code Aztec Code, Han Xin |
| Interface | USB, Bluetooth |
| Offline Mode | Support storage 5000 EAN-13 barcodes |
| DECODE RANGES | |
|---|---|
| 5mil Code39 | 5.1cm~16.2cm/2.0in.~6.4in. |
| 5mil Code128 | 6.3cm~12.7cm/2.5in.~5.0in. |
| 6.6mil PDF417 | 6.3cm~16.0cm/2.5in.~6.3in. |
| 10mil PDF417 | 4.5cm*~22.8cm/1.8in.*~9.0in. |
| 13mil 100% UPC | 5.0cm*~31.7cm/2.0in.*~12.5in. |
| 20mil Code39 | 5.0cm*~49.5cm/2.0in.*~19.5in. |
| 20mil DataMatrix | 3.8cm~34.3cm/1.5in.~13.5in. |
| 20mil QR Code | 3.8cm~27.9cm/1.5in.~11.0in. |
| SOFTWARE SUPPORT | |
|---|---|
| Keyboard Pro SDK Demo OTA Tools iCode My Hanis |
| product options | |||
|---|---|---|---|

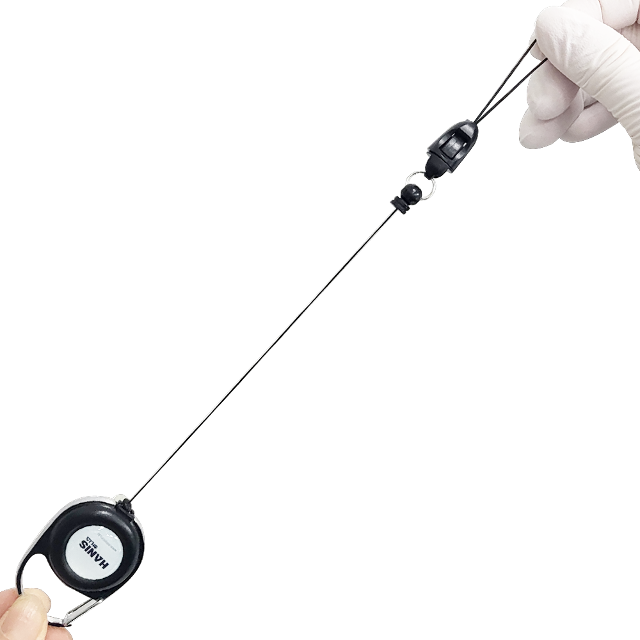

| Reel strap (necklace included) |  |

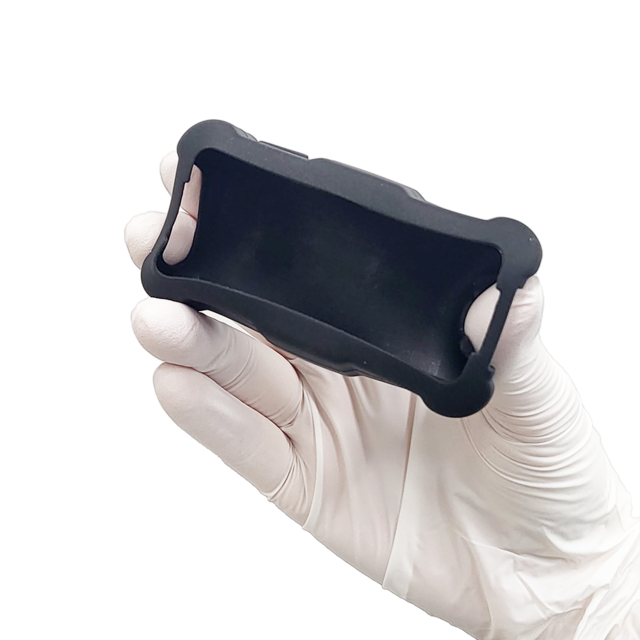

SM2 exclusive jelly case |  |

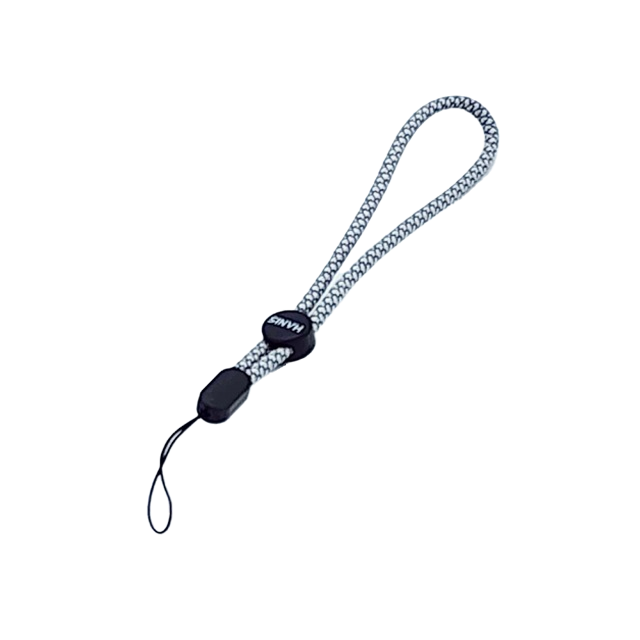

| Gray pattern handstrap |  |

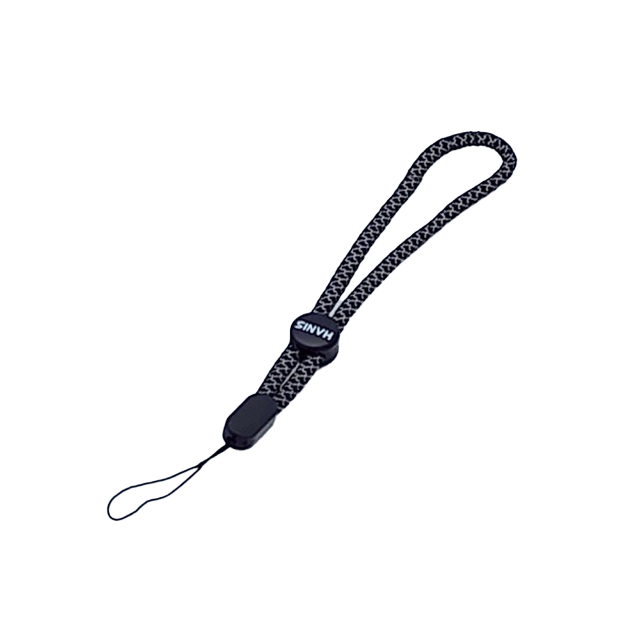

black pattern hand strap |  |
 |
