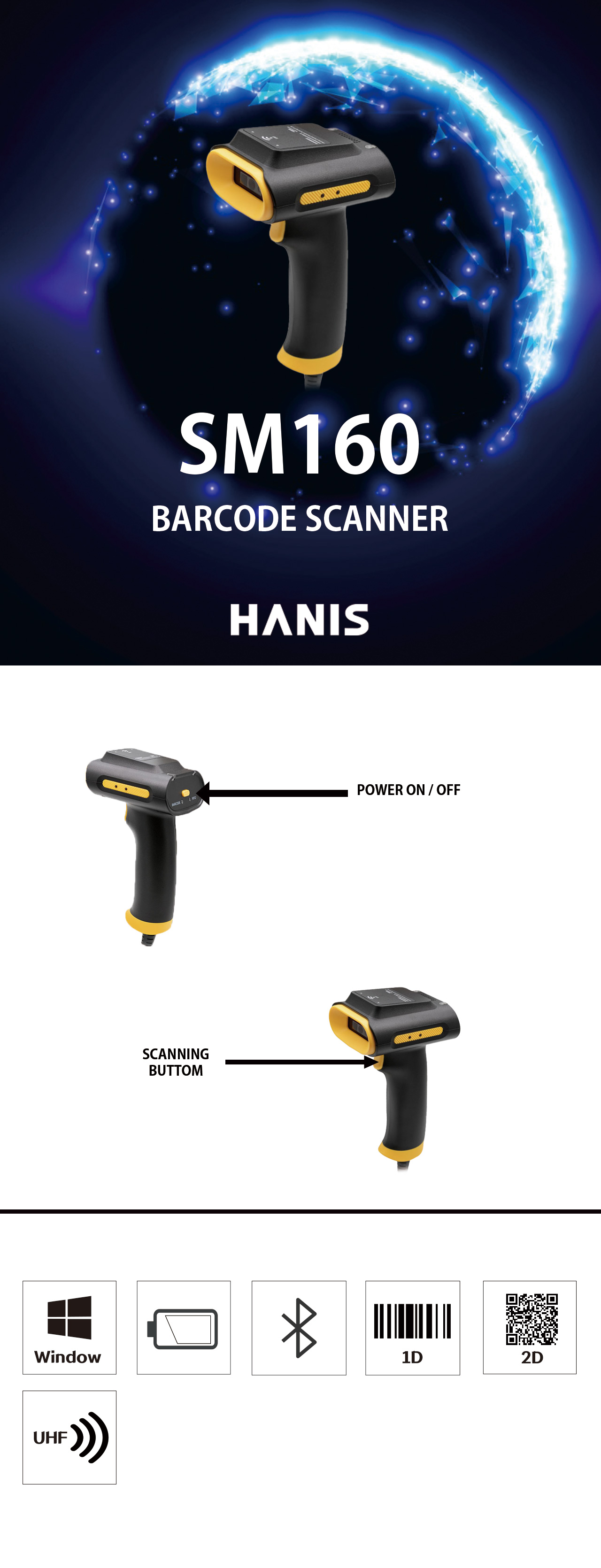

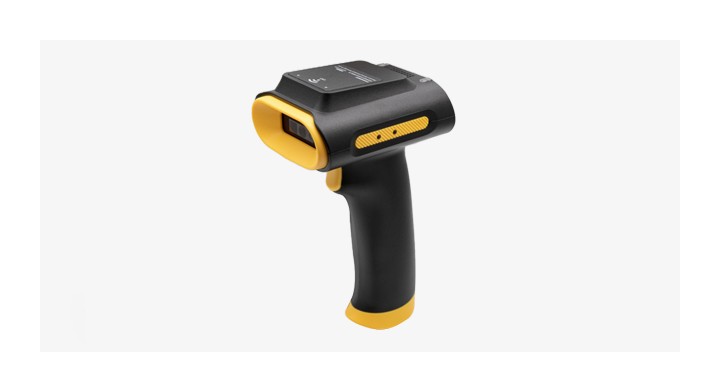

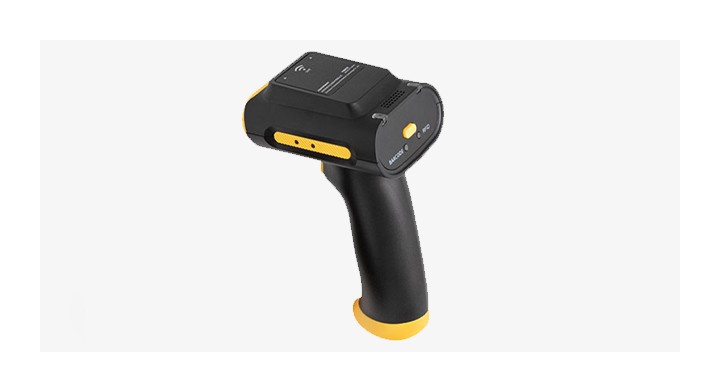

Barcode Scanner SM160
| 크기 | 154mm×87.8mm×65mm 6.46×3.43×2.56in |
|---|---|
| 배터리 | 2600mAh (무선 지원) |
| 재질 | 플라스틱 |
| 알림 | 음성 프롬프트 |
| 키패드 | 전원 키 / 스캔 키 |
| 버튼 | UHF,2D |
| 통신 | RJ45 인터페이스, HID USB |
본문
 |
제품사양
| Basics | |
|---|---|
| Dimensions | 154mm x87.8mm x 65mm 6.46 x 3.43×2.56in |
| Battery | 2600mAh (wireless support) |
| Texture | plastic |
| Notification | voice prompt |
| Keypad | Key support/ Scan key |
| Button | UHF,2D |
| LED Indication | Function and Conditions: 1 for UNF, 1 for 2D Source of electricity : 1 Bluetooth : 1 |
| Communication | RJ45 Interface, HID USB |
| Environment | |
|---|---|
| Drop test | 1.5m |
| UHF RFID | |
|---|---|
| Engine | IMPINJ E310 base CM-3N module |
| Frequency | 920-925MHz / 902-928MHz / 865-868MHz |
| Code | EPC global C1G2(ISO18000-6C) |
| Antenna | circular polarized antenna |
| Output power | 1~25dBm |
| Output power precision | ±1dBm |
| Output power flatness | ±1dBm |
| Maximum read range | >30CM (tag: ALIEN H3) |
| COMMUNICATION | |
|---|---|
| Bluetooth | Bluetooth 5.0 (wireless version) |
| ACCESSORY OPTIONS | |
|---|---|
| USB cable: 2m, TYPE-A, RJ45 input:9V 2A Power supply : 5V 2A |
 |
